Bridge items (Expansion Joints)

(1) Product Outline

Expansion Joint for Bridge is a device that absorbs and buffers the expansion & contraction, displacement, etc. of bridges due to temperature changes, dry shrinkage, concrete creep, dead loads, live loads, wind loads, etc., and it is installed in the grooves between Superstructures on the bridges.

(2) Product Structure and Specification

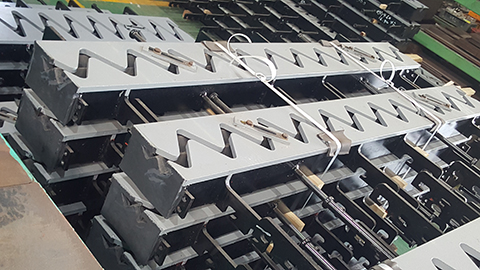

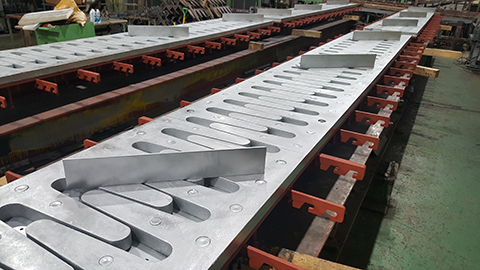

(NUM Joint) (NUF Finger Joint) (NWJ Finger Joint(CF)
a) NUM Joint : 35mm, 50mm, 80mm (for Small span bridges)
b) NUF Finger Joint : 50mm, 60mm, 70mm, 80mm, 100mm, 120mm, 160mm (for Medium span bridges)
c) NWJ Finger Joint(CF) : 200mm, 250mm, 300mm, 350mm, 400mm ~1,050mm (for long span bridges)

(3) Functional Special Features

a) Top plate, Side plate, Anchor's integral structure,
b) Excellent durability,
c) Excellent waterproof,
d) Excellent driving speed,
e) Even distribution of left and right stresses with sawtooth anchors

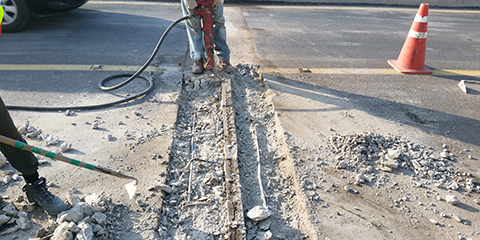

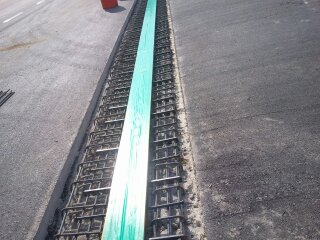

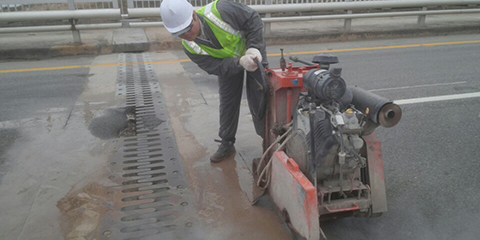

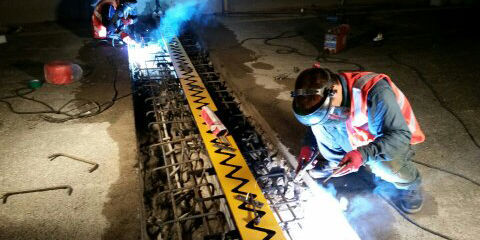

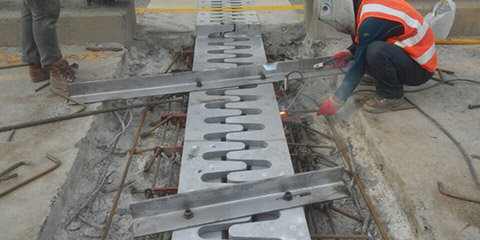

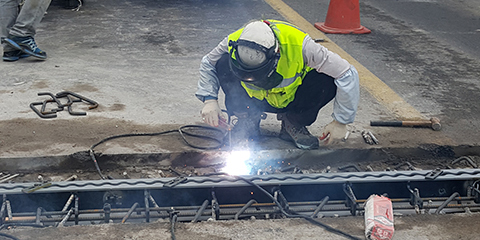

(4) Construction Cases

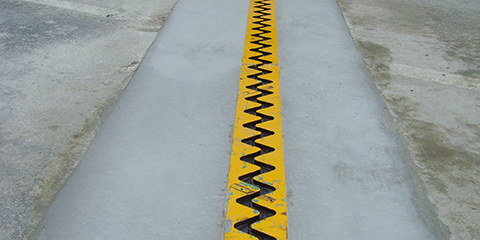

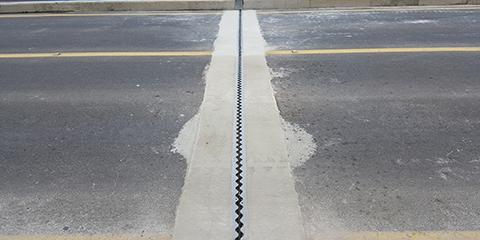

NUM Joint

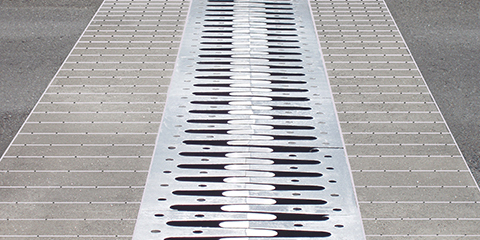

NUF Finger Joint

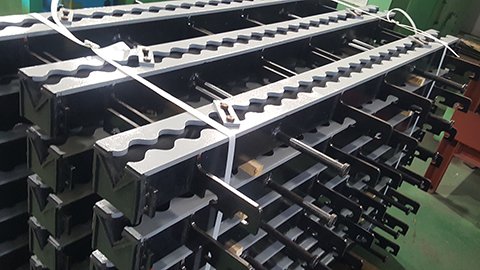

NWJ Finger Joint(CF)
